Every day, packaging factories and distribution centers generate large amounts of cardboard, paper, and plastic waste. As these loose materials accumulate, efficient waste handling and storage become increasingly important. However, not every facility needs a fully automatic baler. A manual tie baler may offer a more cost-effective alternative for facilities with moderate processing requirements.
Read on to know more about how a manual tie baler works and who needs one for your recycling operations.

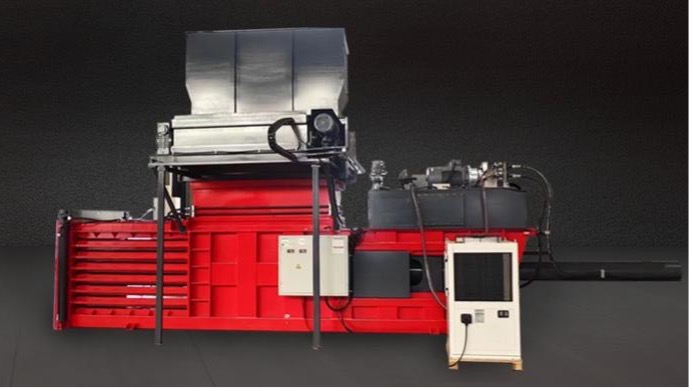

Though the word “manual” is in the machine name, it doesn’t mean this baling machine is entirely manually operated. Instead, a manual tie baler is typically a semi-automatic baling machine that requires human intervention during the tying process. A manual tie horizontal baler features a horizontally arranged compression chamber, where waste materials are compressed horizontally by a hydraulic ram. Manual tie horizontal balers often adopt a closed door design, which may provide flexibility in handling different types of recyclable materials.
Like most baler machines, the work process of a manual tie baler can be divided into four major steps: material loading, hydraulic compression, tying, and bale discharge. As its name suggests, manual tying is the step that deserves particular attention.

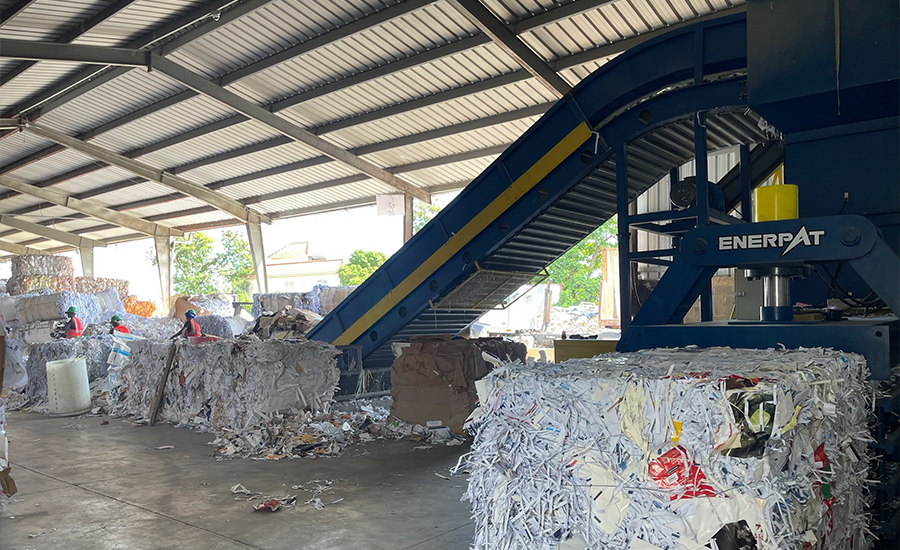

Since a closed door manual tie baler often processes large volumes of waste materials, transportation machines like a conveyor and additional structures like a feeding hopper may be used during the material loading process. The waste materials are transferred to the conveyor, and the conveyor delivers these materials to the hopper. Then, materials enter the compression chamber through the hopper. Once materials are loaded, the compression cycle begins.
During the hydraulic compression process, the hydraulic cylinder drives the compression ram forward to compress the waste materials inside the chamber. As the ram moves forward, the loose materials are compacted into a denser mass with reduced volume. The compression ram then retracts automatically to allow more materials to enter the chamber. This process repeats until the bale reaches the required length.

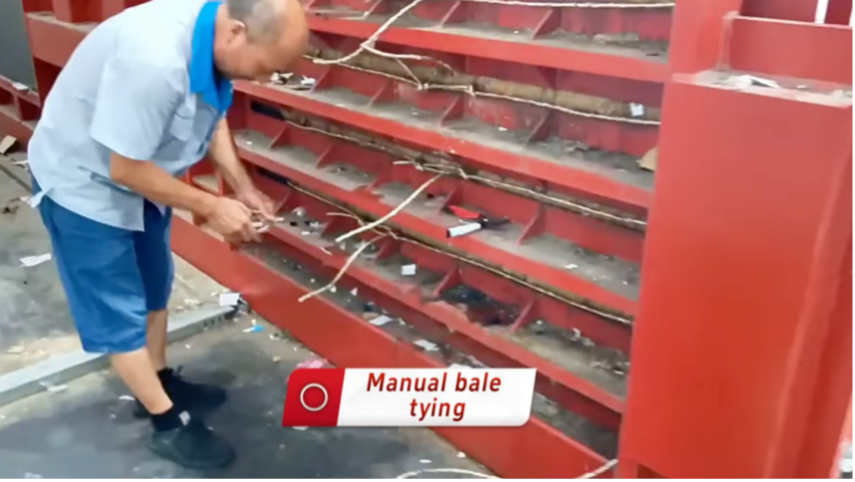

For a semi-automatic baler machine like a manual tie baler, it is a human operator who is responsible for the tying procedure. When the bale reaches the required size and the compression process finishes, the machine stops the relevant compression movement for tying. Following the machine's safety procedures, the operator threads steel wires through the designated tying channels, tightens the wires around the compressed bale, and makes knots to secure the bale.
Once the tying procedure is done, the operator will check the bale condition and open the discharge door controlled by a hydraulic system. Depending on the machine specifications, the finished bales are pushed out of the compression chamber by the compression ram or an ejector ram. A roller conveyor may also help with the bale discharge. When the bale is discharged, the door closes and locks, preparing for the next baling cycle.
A manual tie baler is capable of processing various types of materials. Given its horizontal design, it is often used for processing large volumes and quantities of waste. The manual tie baler often processes materials including paper, cardboard, plastics and textiles. Some manual tie balers can also compress light metal scrap.
The table below shows the typical materials that a manual tie horizontal baler can process and common working scenarios of this machine.
Material Category | Typical Materials | Common Applications |
Paper and Cardboard | OCC, cardboard boxes, wastepaper, paperboard, paper offcuts | Carton manufacturers, printing facilities, paper mills, packaging factories, distribution centers, paper recycling facilities |
Rigid Plastics | PET bottles, HDPE containers, rigid plastic packaging | Beverage bottling plants, plastic packaging manufacturers, plastic container manufacturers, PET bottle recycling facilities |
Flexible Plastics | Plastic film, plastic bags, shrink wrap, woven bags | Plastic film manufacturers, packaging factories, logistics warehouses, plastic recycling facilities |
Textiles and Fibers | Fabric scraps, used textiles, textile offcuts, non-woven fabrics | Textile mills, garment manufacturers, non-woven fabric manufacturers, textile recycling facilities |
Given that a manual tie baler can process various recyclables and has a wide range of applications, you may now wonder if you need a manual tie baler for your recycling operations. Consider the following four factors before making a decision.
As manual tie horizontal balers require human intervention during tying, they cannot complete the entire baling process continuously without operator involvement. As a result, this type of baler is better suited for recycling facilities with intermittent processing requirements.
For example, distribution centers, retail warehouses, and packaging factories that accumulate waste materials periodically may consider a manual tie baler for their recycling operations.
A closed door manual tie baler requires operators to tie the compressed bales manually. Recycling plants or factories should designate operators with the necessary training and experience to complete the tying process.
For small recycling facilities, manufacturing plants, or paper recycling centers with available operators, manual tying may be a practical option without investing in an automatic tying system.
The purchase price of a manual horizontal baler is generally lower than that of a fully automated horizontal baler machine. This is partly because this type of horizontal baler has a simpler tying mechanism. A manual tie baler doesn't have an automatic tying system, so the related equipment and maintenance costs may be reduced.
Small and medium recycling companies with moderate processing requirements but limited equipment purchase budgets can consider a closed-door manual tie baler.
For some recyclers who have already adopted a vertical baler to improve recycling efficiency but find that its processing capacity is still far from meeting their demands, a manual tie horizontal baler may be their next option.
For example, cardboard recycling centers and carton manufacturers with increasing waste volumes may need higher processing capacity. These facilities can consider upgrading from a vertical baler to a manual tie horizontal baler to improve their processing capacity.
Automation has long been a trend in the modern recycling industry. But why do we still talk about something manual when it comes to the tying procedure? Suitability is probably the answer. This section will explain key factors that may help you calculate your operational requirements and may influence your final decision.
The automation level reflects the structural differences between an auto tie baler and a manual tie baler. To obtain a higher automation level and to realize the auto tying process, extra mechanical structures are added to a fully automated baler. Therefore, the initial machine purchase price of an automated horizontal baler is generally higher compared to a manual tie baler.
As for long-term operation and maintenance, the long-term costs of these two types of machines also vary. A manual tie baler has a simpler tying mechanism so that fewer components related to tying need maintenance. By contrast, additional maintenance has to be done routinely to ensure the smooth operation of an auto tie baler. However, potential labor savings of an auto tie baler may offset its higher purchase price in the long term.
The manual tying process of a manual tie horizontal baler temporarily pauses and slows the continuous processing. This type of baling machine is more suitable for recycling plants or other facilities with relatively moderate processing requirements. The auto tie baler can support higher throughput by reducing manual intervention during the tying process and allowing more continuous baling operations.
The need for labor presence and intervention in a manual tie baler leads to greater labor requirements. These operators need to be trained to manually thread, tighten, and secure bale wires. As a result, when choosing a closed door manual tie baler with a relatively lower initial purchase price, you should take the training expenses and hiring costs into consideration.
For an auto tie baler, human intervention and supervision are still needed. But manual intervention can be significantly reduced for an auto tie baler.
Comparison Factors | Manual Tie Baler | Auto Tie Baler |
Initial Investment and Long-Term Costs | Lower initial costs; simpler tying mechanism; higher labor costs | Higher initial costs; more complex tying mechanism; potential labor savings |
Material Volume and Required Throughput | Moderate volumes; intermittent operations | High volumes; continuous operations |
Labor Costs and Efficiency | More manual intervention; higher tying-related labor costs | Less manual intervention; higher tying efficiency |
The ENERPAT HBM Closed-Door Horizontal Baler is a semi-automatic baling machine featuring automatic hydraulic compression and manual tying. Equipped with a steel chain feeding conveyor, it efficiently processes recyclable materials such as paper, cardboard, and plastics into compact bales. Adjustable bale dimensions help meet different storage and handling requirements.
A: Manual tie balers commonly use steel wires. Black annealed and galvanized wires are common options. The appropriate wire type and gauge depend on the baler specifications, bale size, and material properties. It is recommended to consult the manufacturer for suitable wire specifications.
A: Regular maintenance is required to maintain consistent baling performance and to extend the lifespan of the baler. Examine your manual tie baler routinely, including the hydraulic system, compression chamber, chains, belts, rollers and electrical connections.
A: Depending on the machine specifications, the footprint of a closed door manual tie baler varies. However, it is noticeable that a manual tie horizontal baler takes up a relatively large amount of space because of its horizontal structure and additional equipment.
A: For a manual tie baler from ENERPAT, the bale sizes are adjustable to meet different operational requirements. However, you should refer to the machine specifications to determine the exact adjustment range.
Figure out whether a manual tie baler is suitable for your recycling operations by thoroughly evaluating your material types, volume and your operational requirements. The next step to take may be to find a manufacturer who provides a reliable manual tie baler.
ENERPAT is an experienced recycling equipment manufacturer who provides various series of reliable balers. Contact ENERPAT to find out the most suitable recycling solution for your waste management business.
