Views: 0 Author: Site Editor Publish Time: 2026-10-17 Origin: Site
The accumulation of end-of-life vehicles has become a noticeable phenomenon these days. However, can we better solve this environmental headache and turn them into treasures? A car crusher may be the suitable solution chosen by some scrap car recycling professionals. Therefore, taking a closer look at this car recycling machine is of great importance.
This article will introduce this car crushing machine in depth and walk you through the types, uses and working principles of these vehicle crushers.
The car crusher is a type of scrap metal recycling machine that is specialized for scrap cars, including end-of-life vehicles (ELVs), car bodies and automotive metal scrap. This car crushing machine is also called an automobile crusher or a vehicle crusher. The car crusher is often driven by a powerful hydraulic system, so that a hydraulic car crusher can also represent this type of car recycling machine.
As car crushers are designed to process cars, they are relatively large in size and car crusher manufacturers often provide customization services to meet specific requirements of scrap car recyclers.
To satisfy different scrap car recycling requirements, there are several variations of car crushing machines. In terms of their structural designs, the number of rams and grapple applications are two main classification criteria of these vehicle crushers.
Single-cylinder and dual-cylinder car crushers are two common types of this car crushing machine. They differ from one another in terms of the number of cylinders. As a result, they have different scrap car processing performance and are suitable for different working scenarios.
The number of cylinders is the most significant structural difference between these two types of car crushers. Apparently, the single-cylinder car crusher has only one main compression cylinder, while two main compression cylinders are used in the dual-cylinder automobile crusher. The dual-cylinder car crusher is generally larger in size.
Compared with the single-cylinder version, the dual-cylinder car crusher may offer greater compression force and better performance in demanding crushing operations, depending on the hydraulic system design. Scrap car recycling yards and other related waste management facilities with high recycling capacity demands may consider this type of vehicle crusher.

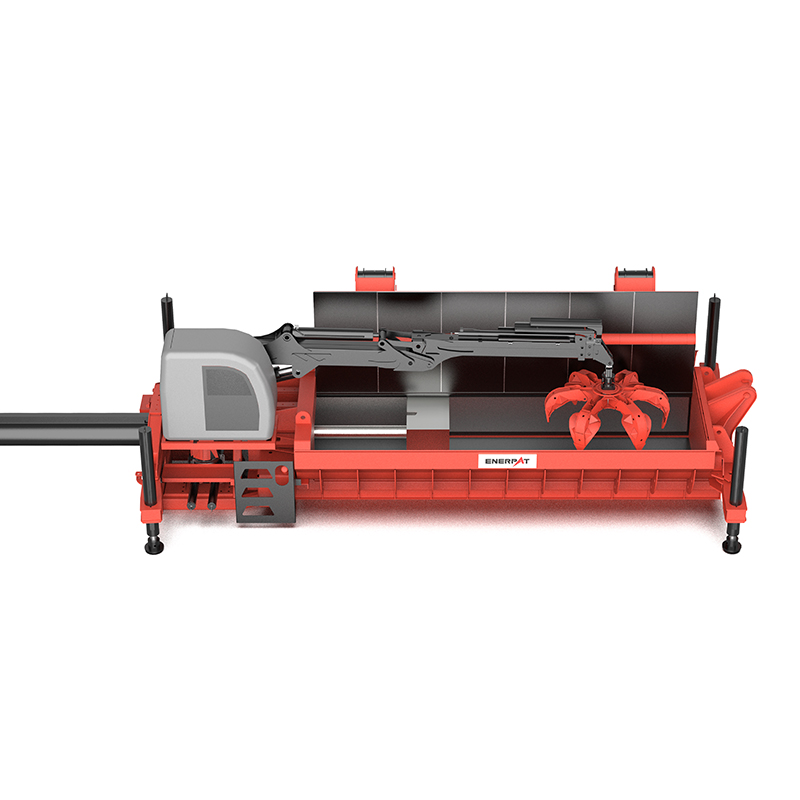

The grapple is an optional mechanical structure for car crushers. It mainly helps with the scrap metal feeding stage. Not all car crusher models use this attachment, though; it is a common configuration that can improve scrap metal loading.
The grapple is often hydraulically powered. This structure is able to use a movable arm and gripping claws to transfer scrap metal into the compression chamber. In some cases, the grapple can also help with bale discharge depending on the specific car crusher models.
By applying this grapple feeding design, car crushers with a grapple benefit from more convenient material loading and this structure can easily integrate with existing material handling processes. In addition, the dependence on other equipment and manual intervention is likely to be reduced.
Because of their distinct structural designs and large sizes, car crushers are designed for selected materials, and they are applied only in certain scrap car processing scenarios. The material types that an automobile crusher can process, and the common applications of these car crushing machines are shown in this section.
End-of-life vehicles, including common passenger cars, SUVs, vehicle bodies and trucks, are typical material types that are suitable for car crushers. These vehicle crushers are capable of accommodating and processing this type of large metal scrap. However, the applicable materials depend on the specific car crusher model specifications. Besides, the car crushing machine is also applicable to scrap steel and mixed metal components.
It is worth mentioning that the specific recycling requirements depend on the car crusher model. Make it clear whether the car can be processed directly without disassembly. In addition, safety considerations and local regulations concerning scrap cars should be studied and evaluated thoroughly.
Car crushers are often used in waste management scenarios related to the car manufacturing and recycling industries. Common applications of this car crushing machine include auto recycling and dismantling yards, scrap metal recovery lots, vehicle recovery and salvage operations, steel mills and the non-ferrous metal smelting industry.
The mobile car crusher makes it possible for these recycling facilities to process scrap cars on site without the need to transfer metal scrap to a stationary processing facility. They may also benefit from the scrap car compacting operations by saving storage space and generating higher recycling returns.
The table below demonstrates the supported materials and common target applications of car crushing machines.
Supported Materials | End-of-Life Vehicles (ELVs) | |
Scrap Steel | ||
Mixed Metal Components | ||
Target Applications | Vehicle Recycling | Auto Recycling and Dismantling Yards |
Vehicle Recovery and Salvage Operations | ||
Scrap Metal Recycling | Scrap Metal Recovery Lots | |
Downstream Industries | Steel Mills | |
Non-Ferrous Metal Smelting Industry | ||
The competitive compressing and baling performance of car crushers is related to their powerful hydraulic compression design. This hydraulic structure is the key component of the hydraulic car crusher. The major processing stages of car crushers, especially the hydraulic compression process, will be explained in this section.
The size and volume of scrap cars make it difficult to transport. To meet these processing requirements, car crushers are often movable. They can be transported to the designated processing zone to compact scrap cars on site.

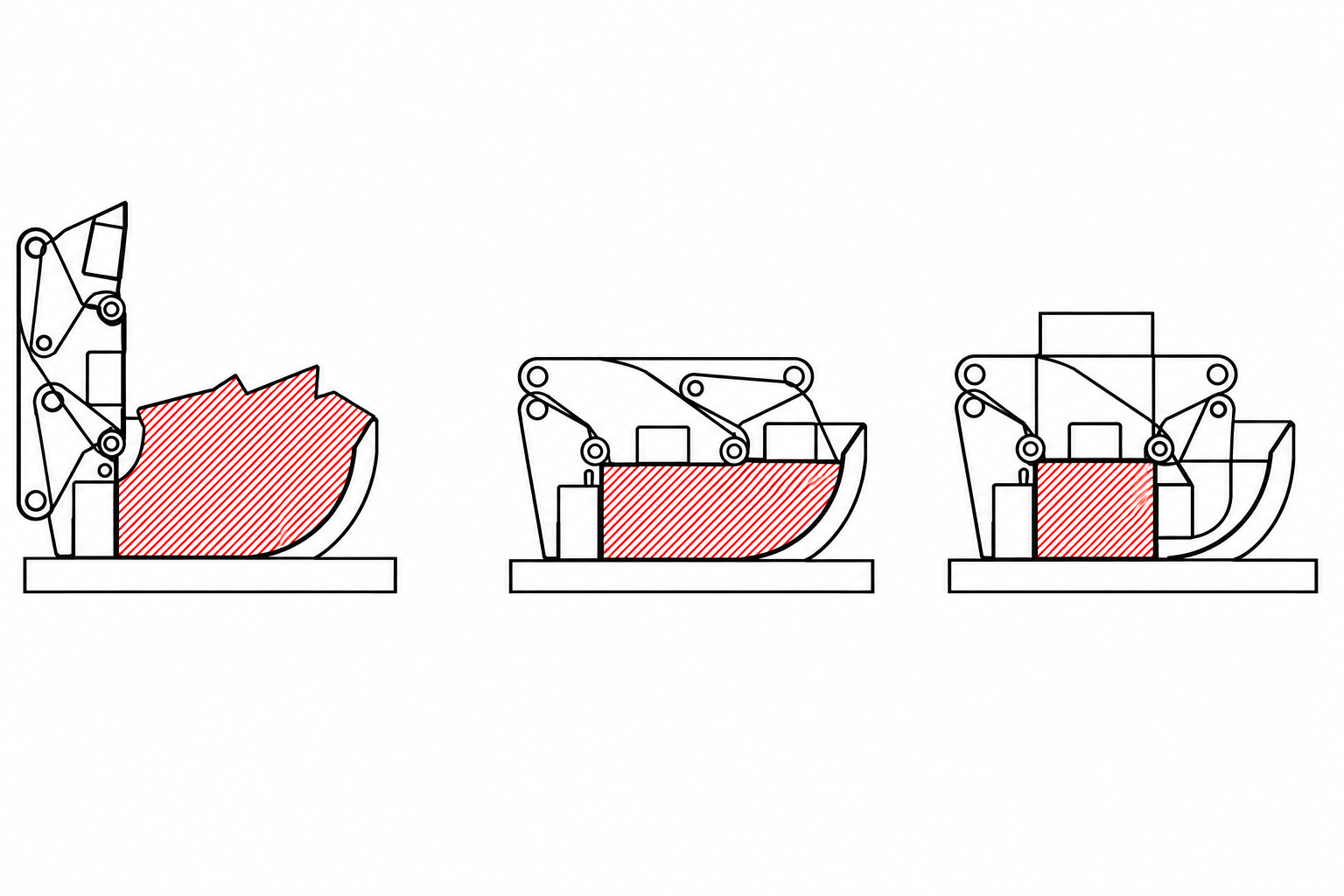

Once the automobile crusher arrives at the preset processing zone, the four outrigger legs of this car crushing machine extend to lift it. The transport truck then leaves, and the four legs retract to lower the car crusher to the ground. The main hydraulic cylinder is then positioned and secured in place before retracting to its rearmost position. The discharge door closes and the two flaps fully retract to prepare a proper processing chamber.
The scrap cars are then fed into the compression chamber. Some car crushers with grapples can use this mechanical structure for more efficient scrap loading. The two flaps of the car crushing machine close in sequence to better secure the vehicle body. By now, the preparation for normal crushing operation is complete.
Hydraulic car crushers use a hydraulic system to power their strong compression performance. The hydraulic system mainly contains components including pumps, valves, cylinders and rams. The compression chamber is where the hydraulic compression process takes place.
For a regular hydraulic compression cycle, all these components are involved in this process. Hydraulic oil circulates through the hydraulic system, and the pressurized oil is directed to the hydraulic cylinder. The hydraulic cylinder converts hydraulic pressure into linear force. The linear force generated by the hydraulic cylinders works on the hydraulic ram, and the ram uses this substantial compression force to deform and compact target scrap cars. Once the preset pressure is reached, the main ram retracts slightly, and the hydraulic compression stage is completed.
The discharge door opens after the compression stage. The finished bales are pushed out of the compression chamber by the main ram. Grapples can also help with bale discharge in the processing stage. The ram retracts to its rearmost position, the discharge door closes, and the two flaps reopen. The next car crushing cycle is then ready to be initiated.
After being processed by hydraulic car crushers, the finished bales have increased density and uniformity. These features make the further handling and transportation process easier. Moreover, downstream processing may also be facilitated.
ENERPAT is a car crusher manufacturer with over 80 years’ expertise. We provide car crushing machines with customization options that may suit your scrap car recycling requirements.

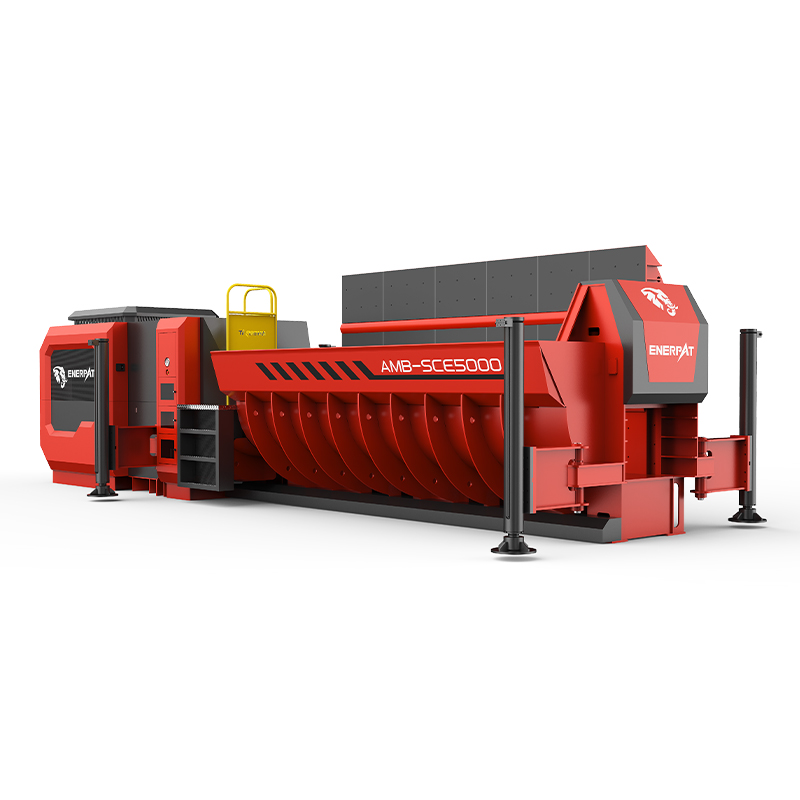

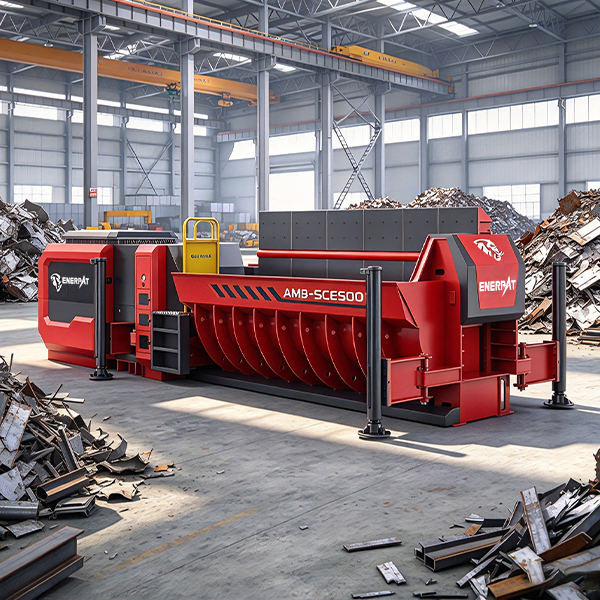

The ENERPAT AMB-SC Series Mobile Car Baler is a heavy-duty hydraulic car crusher designed for processing end-of-life vehicles, light scrap steel, and mixed metal scrap. Powered by a diesel engine, this mobile machine enables on-site crushing without relying on grid electricity. Its hydraulic system compresses scrap into dense, uniform bales for easier storage and transportation.
In addition to the standard single-cylinder configuration, ENERPAT offers dual-cylinder and grapple-equipped models to accommodate different recycling requirements.
A: The terms car crusher and car baler are sometimes used interchangeably in the recycling industry. Still, they differ slightly from each other when it comes to baling performance. Some car crushers mainly flatten vehicle bodies, while car balers typically compress scrap cars into dense and uniform bales.
A: Not necessarily. A mobile car crusher or mobile car baler may be powered by diesel. As a result, no grid connection is needed for the processing operations, and it is more flexible in terms of the processing site.
A: To guarantee the smooth and sustainable operation of a hydraulic car crusher, timely and routine maintenance is required. Check the hydraulic oil, seals, hydraulic rams and cylinders and conduct routine inspections.
A: The first step to take when choosing the right car crusher is to thoroughly evaluate your scrap material. Recyclers with high volumes of scrap cars or extra-large scrap metal should consider car crusher models of suitable specifications.
By taking a closer look at car crushers, you may be aware that this car crushing machine is a practical approach to solve your scrap car recycling headaches. Consider whether to adopt this promising recycling solution by comprehensively evaluating your scrap car recycling requirements.
ENERPAT, as we have sophisticated waste management technologies and rich manufacturing experience, may provide a practical scrap car processing solution for your recycling business. Contact ENERPAT for detailed information to upgrade your recycling business.
