Standard passenger cars, SUVs, and extended-cab pickup trucks… As these end-of-life vehicles (ELVs) pile up in vehicle recycling yards these days, many recyclers are now seeking better solutions to process these scrap cars more efficiently and to improve their returns on investment. The scrap car baler is one of their recommended options for its ability to compress vehicles into dense and uniform bales.
If you are wondering what a scrap car baler is and how it compresses vehicles to help you better manage your scrap vehicles, this article will answer these questions in detail for you.
A scrap car baler, also called an auto baler or a car body baler, is a type of recycling machine that is specifically designed for processing scrap cars. This car baling machine can be positioned directly over the scrap vehicle, accommodate extra-large car bodies with its solid structure and compress car scrap into dense bales. These processing capabilities enable a scrap car baler to reduce scrap car volume and contribute to subsequent handling and processing.
As its name suggests, the scrap car baler is tailored for scrap cars, especially end-of-life vehicles (ELVs). Automotive scrap metal including scrap steel and mixed metal components can also be processed by this auto baler. This car baler machine often serves auto recycling and dismantling yards, vehicle recovery and salvage operations, and industries involved in vehicle recycling. Mobile scrap car balers help these facilities process ELVs on-site without transporting them to a stationary processing facility.
Supported Materials | End-of-Life Vehicles (ELVs) | |
Scrap Steel | ||
Mixed Metal Components | ||
Target Applications | Vehicle Recycling | Auto Recycling and Dismantling Yards |
Vehicle Recovery and Salvage Operations | ||
Scrap Metal Recycling | Scrap Metal Recovery Lots | |
Downstream Industries | Steel Mills | |
Non-Ferrous Metal Smelting Industry | ||
The large size, complex structure and transportation challenges of ELVs pose some recycling obstacles for common metal balers. To meet the specific recycling requirements of this car scrap, the scrap car baler is specially designed with some specialized components. Four key components of the car scrap baler will be explained in this section.
A scrap car baler usually has outrigger legs. These legs are often driven by hydraulic power. When the scrap car baler needs to be relocated, they are able to extend and lift the car baler machine. The machine can then be moved with the help of other equipment. Once the car scrap baler reaches the designated position, the outriggers retract to lower the auto baler to the ground. These components may contribute to easier relocation.
The compression chamber is an important component of the scrap car baler. The compression process takes place inside this chamber. To accommodate end-of-life vehicles, the compression chamber of an auto baler is designed to fit large vehicle bodies. The compression chamber works together with the hydraulic compression system to compact scrap vehicles.
The hydraulic compression system is a core part of a car body baler. Its main components include pumps, valves and cylinders. The pump circulates hydraulic oil through the system, while the valves regulate its flow and direction. This system can convert hydraulic pressure into mechanical force and thus provide substantial compression force to process the scrap car.
This configuration, mainly made up of a discharge door, a hydraulic ejector ram and a front discharge opening, is designed for bale discharge. The discharge door opens once the compression finishes and the ejector ram pushes the finished bale out through the front discharge opening. This automatic discharge configuration can help improve processing efficiency and reduce manual intervention.

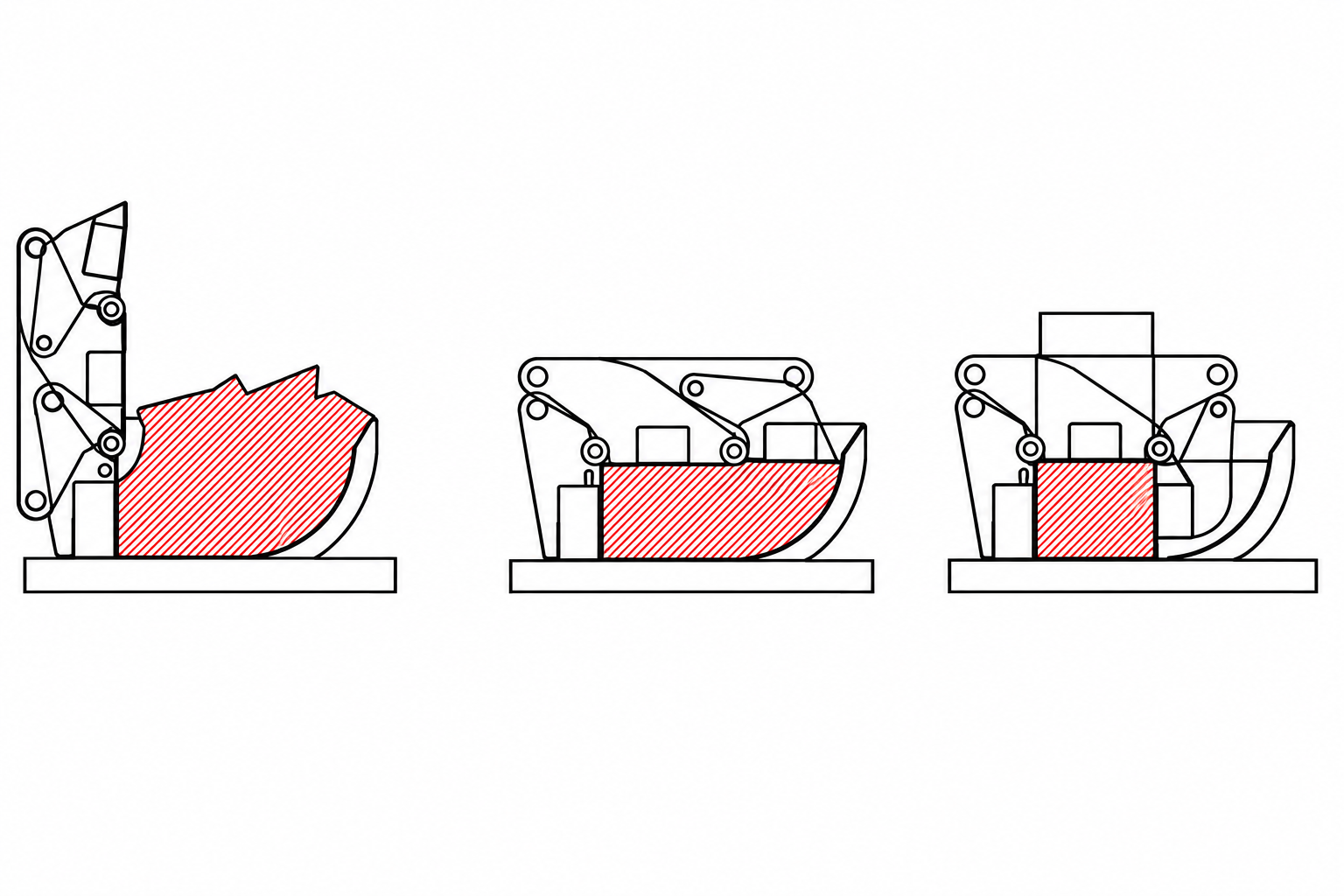

After learning about the key components of the scrap car baler, it is time to understand how these components work together to manage scrap car compression. The main processing stages, including machine positioning, vehicle loading, hydraulic compression and bale ejection, will be explained in this section.

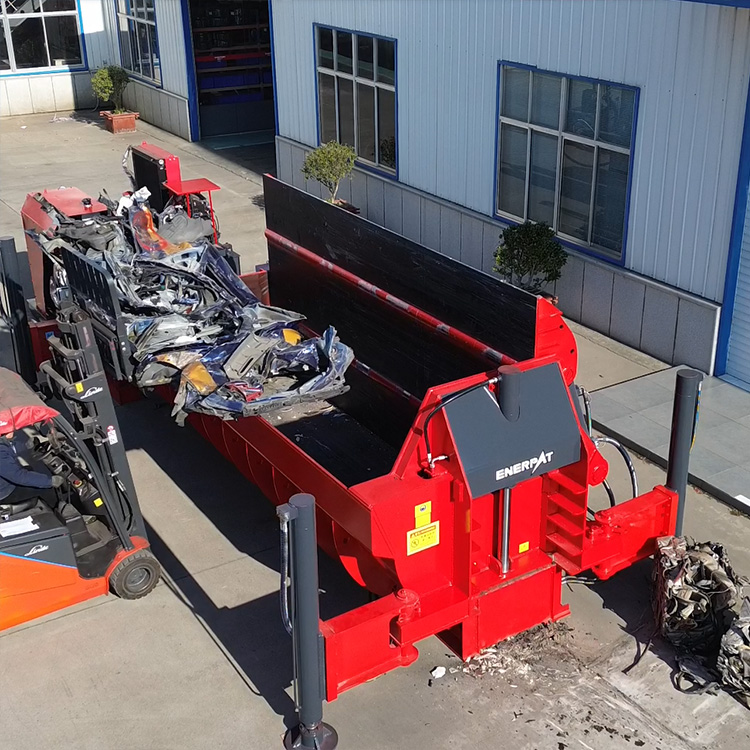

As mobility is a key feature of a scrap car baler, machine positioning is a crucial step of this recycling machine. The mobile car baler is often transferred by truck. Once it arrives at the designated processing zone, the four outrigger legs extend to lift the machine. The transport truck is then driven out from underneath the machine, and the four outrigger legs retract to lower the scrap car baler to the ground. The main hydraulic cylinder is then positioned and secured in place before retracting to its rearmost position, preparing the baler for normal operation.
The discharge door closes and the two flaps fully retract to prepare a proper processing chamber. Then, the scrap car can be fed into the positioned scrap car baler. Some auto balers are also equipped with a grapple arm to load metal scrap. To better secure and compress vehicles, the primary and secondary flaps also take part. The primary flap closes first to initially secure the vehicle body. After that, the secondary flap closes to further secure and consolidate the target material.
Now that the target vehicle is ready, the compression stage begins. The hydraulic pumps draw hydraulic oil from the reservoirs and circulate it in the hydraulic system. The pressurized fluid is directed towards the cylinders, and they convert hydraulic pressure into compression force. This compression force is then transferred to the compression ram, and the ram deforms and compacts the scrap car. Once the preset pressure is reached, the main ram retracts slightly, and the hydraulic compression stage is completed.
When the compression process is complete, the discharge door of the scrap car baler opens under the command of the control system, and the ram pushes the finished bale out of the compression chamber to the front of the car baler machine. The grapple arm of some auto baler models can also help handle and stack the finished bales. The ram retracts to its rearmost position, the discharge door closes, and the two flaps reopen. The car body baler can then initiate the next scrap car baling cycle.
Using a scrap car baler can be beneficial for your scrap car recycling operation. By compacting the oversized car scrap, it not only helps reduce the scrap storage space but also helps improve the transportation efficiency. These two major benefits will be discussed in this section.
Compared with the bulky and irregular end-of-life cars and car bodies, the finished bales are greatly reduced in volume and are denser and more uniform. Their relatively regular shapes also make them easier to stack, reducing the empty spaces between stored materials. These bales take up less storage space, which may help lower warehouse expenses and maximize the utilization of storage space.
The finished bales have a uniform and organized shape, so that the transportation efficiency can be optimized. The organized bales are much easier to handle compared to the car body scrap and their uniform shape makes them better adapted to the handling machines. When being transported, the finished bales occupy less space and face relatively fewer load-shifting risks. The amount of scrap car material that a truck can carry is increased. In addition, the safety and the stability of the scrap car transportation are optimized. As a result, the overall transportation efficiency increases.
ENERPAT is a reliable scrap car baler manufacturer with over 80 years’ expertise in the recycling field. Scrap car recycling solutions catering for different requirements are provided for your ELV recycling operations.

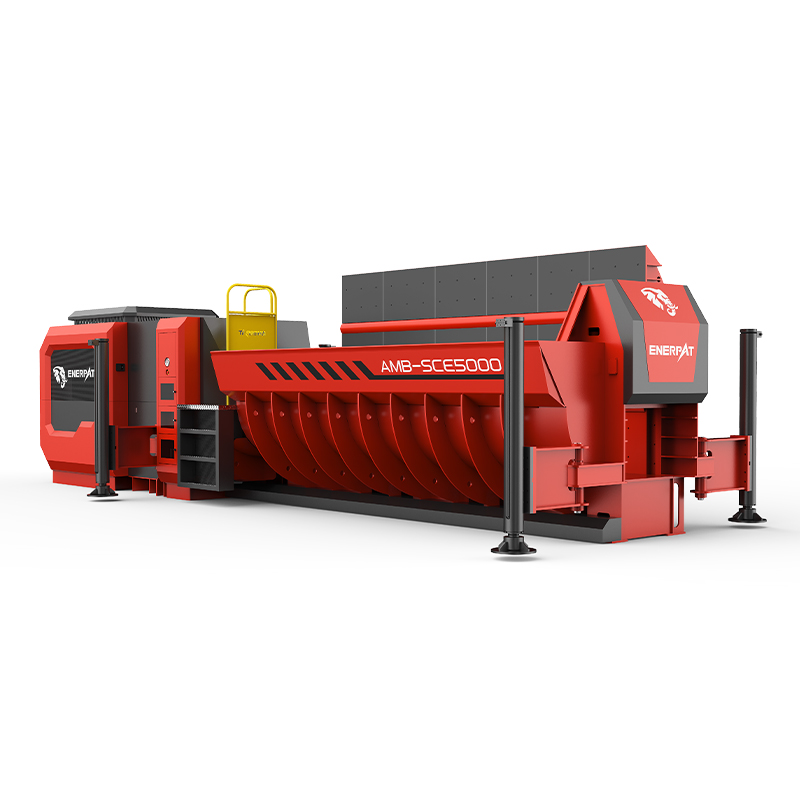

The ENERPAT AMB-SC Series Mobile Car Baler is designed for processing end-of-life vehicles (ELVs), light scrap steel, and mixed metal components. The series offers compression forces ranging from 25 to 180 tons, with chamber lengths of 5,000–6,000 mm to accommodate full vehicle bodies. Equipped with diesel power, hydraulic outrigger legs, and Siemens/Schneider PLC controls, the machines support on-site vehicle processing without requiring a grid connection.
To adapt to specific requirements, scrap car balers with other configurations can be customized. ENERPAT also offers a Grapple-Fed AMB-SC and a Dual-Cylinder AMB-TC to meet different recycling requirements. The Grapple-Fed AMB-SC uses a grapple arm to load scrap and handle finished bales, while the Dual-Cylinder AMB-TC is designed for larger vehicles and higher processing capacity.
A: The scrap car baler, characterized by its extra-large size, is suitable for processing end-of-life vehicles (ELVs), car bodies, light scrap steel, and mixed metal scrap. This metal scrap is often produced by facilities including auto recycling and dismantling yards, scrap metal recovery lots, and vehicle recovery and salvage operations.
A: Yes. A scrap car baler has a large compression chamber to accommodate the entire vehicle body. No prior structural dismantling is required. However, the target vehicles must undergo proper depollution before baling.
A: Different hydraulic configurations affect the compression force, processing capacity, and suitable vehicle sizes of a car baler. Single-cylinder models are generally suitable for standard vehicle recycling operations, while dual-cylinder configurations can provide greater compression force for handling larger vehicles and higher processing demands. The ideal configuration depends on the scrap materials, required throughput, and operating conditions.
A: There are several essential evaluation criteria worth considering when choosing the right scrap car baler. Processing capacity, operational efficiency, bale specifications and operational flexibility are some of the key considerations. The types and sizes of scrap vehicles, available power supply, and specific site conditions should also be taken into account.
Equipped with knowledge of scrap car baler working principles, you may now set out to choose the right scrap car baler to upgrade your recycling facilities. ENERPAT offers scrap car baler solutions with reliable performance and practical engineering designs.
Contact ENERPAT today with your specific scrap car recycling requirements. Our engineering team will help you get a customized solution to enhance your processing capacity and improve your potential return on investment.
