Views: 0 Author: Site Editor Publish Time: 2025-10-02 Origin: Site
A Vertical Baler is a type of waste compaction machine designed to compress recyclable materials such as cardboard, paper, plastics, and textiles into dense, manageable bales. Unlike horizontal balers, which are larger and often used in heavy-duty recycling plants, vertical balers are compact and space-saving, making them ideal for warehouses, retail stores, logistics centers, and recycling facilities.
In today’s world, where waste management and recycling play a critical role in reducing costs and supporting sustainability, vertical balers have become an essential piece of equipment. They not only help businesses minimize the volume of waste materials but also reduce storage requirements and transportation costs.

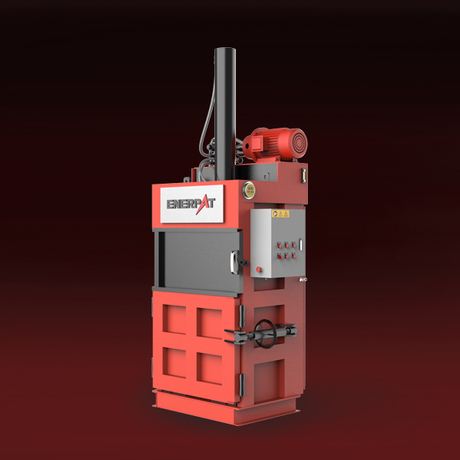

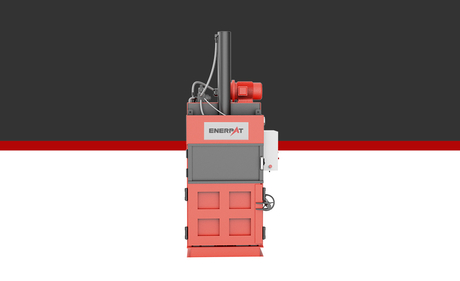

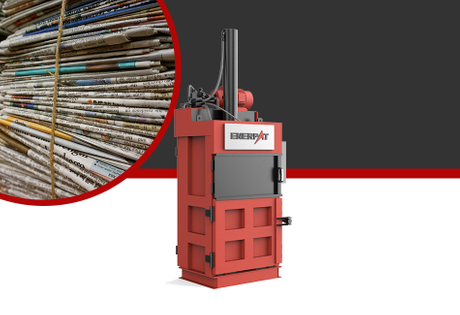

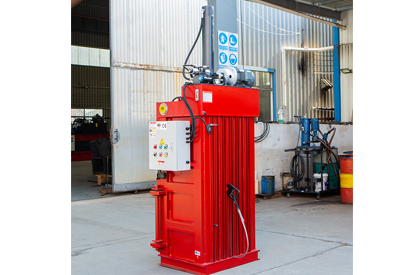

A Vertical Baler is a compact industrial machine designed to compress recyclable materials into uniform, tightly bound bales. It is called “vertical” because the compression chamber operates in an upright position, with materials fed from the top. This design allows for smaller floor space requirements, making it suitable for businesses with limited room.
Vertical balers are commonly used to compress a variety of materials, including:
Cardboard: Flattened cartons and boxes from warehouses, retail stores, and supermarkets.
Paper: Office paper, newspapers, and other waste paper.
Plastics: PET bottles, shrink films, and other flexible plastics.
Textiles: Fabric scraps from manufacturing or recycling centers.
By compressing these materials, vertical balers make storage, handling, and transportation easier while reducing waste volume significantly.
When choosing a baler, it’s important to understand the differences between vertical and horizontal designs:
Feature | Vertical Baler | Horizontal Baler |
Space Requirement | Compact footprint; ideal for limited space | Requires more floor space; suited for high-volume operations |
Cost | Lower initial investment; economical for small to medium businesses | Higher upfront cost; designed for heavy-duty industrial use |
Operation | Manual or semi-automatic feeding; simpler setup | Fully automatic or conveyor-fed; higher throughput |
Applications | Warehouses, retail, recycling small to medium volumes | Large recycling centers, industrial manufacturing plants |
In summary, vertical balers are perfect for businesses that need an efficient, space-saving solution to compress recyclable materials, while horizontal balers are better suited for large-scale operations with high-volume waste.
Operating a Vertical Baler is a straightforward yet highly efficient process that transforms loose waste materials into compact, easy-to-handle bales. Understanding this step-by-step workflow is essential for businesses looking to improve their recycling efficiency, save space, and reduce waste management costs. Below is a detailed guide on how a vertical baler works.
The process begins with feeding materials into the baler’s compression chamber. Materials such as cardboard, paper, plastics, and textiles are placed manually through the top feeding door.
Proper material placement is crucial for achieving uniform compression. Unevenly loaded materials can cause inconsistent bale shapes or reduce the efficiency of the hydraulic system.
Some vertical balers include a feeding hopper or chute, which simplifies loading for high-volume operations and ensures safety by keeping hands away from moving parts.
Regular inspection of incoming waste materials is recommended to remove oversized objects or contaminants that could damage the baler.
By carefully feeding materials, operators lay the foundation for consistent bale quality and optimal performance of the vertical baler.
After loading, the hydraulic system takes over to compress the materials. This is the core step in how a vertical baler works:
The hydraulic ram exerts powerful downward pressure, compressing loose materials into a dense, manageable block.
Volume reduction: Materials can be compacted by up to 80%, significantly reducing the space required for storage and transportation.
Modern vertical balers feature efficient hydraulic circuits that ensure smooth and stable compression, with minimal noise and vibration.
Automatic pressure control: Advanced models can automatically adjust hydraulic flow based on the material type and load size, ensuring consistent bale density without leaks or pressure fluctuations.
Hydraulic compression is what enables vertical balers to convert bulky, loose waste into compact, transportable bales, making waste management more cost-effective.
Once the material is fully compressed, the next step is bale tying. Proper binding ensures that the compressed materials retain their shape during handling, storage, and transportation.
Wire or strapping is typically used to secure the bales. Some vertical balers come equipped with semi-automatic or automatic tying mechanisms to simplify the process.
Safety benefits: Automated tying reduces the risk of operator injury and speeds up production.
Quality control: Properly tied bales are uniform in shape, making stacking and storage easier and maximizing warehouse space.
Bale tying is an essential part of how a vertical baler works because it transforms compressed waste into a durable, transport-ready product.
The final step is bale ejection. After tying, the compressed bale must be safely removed from the chamber to allow the next load to be processed.
Most vertical balers feature a flipping or ejection mechanism that smoothly pushes or tilts the bale out of the compression chamber.
Ease of operation: This step reduces manual labor and ensures that bales are handled safely without risk to personnel.
Continuous workflow: Efficient bale ejection allows for faster processing of multiple loads, increasing overall productivity.
The combination of compression, tying, and ejection ensures that each cycle of the vertical baler produces a high-quality, compact bale that is easy to transport or store.
Understanding how a vertical baler works and following its step-by-step workflow offers numerous advantages for businesses involved in recycling and waste management. Adhering to proper procedures ensures that the baler operates efficiently, safely, and cost-effectively, while maximizing the value of the compressed bales.
Compressed bales occupy far less space than loose materials. By systematically feeding, compressing, and tying waste, vertical balers transform bulky cardboard, paper, plastics, or textiles into dense blocks. This efficient use of storage space allows warehouses and recycling centers to optimize their layout and handle larger volumes of materials without expanding storage areas.
Following the proper baling process results in compact, uniform bales that are easier to transport. Denser bales mean fewer trips are required to move materials to recycling facilities or disposal sites, which translates to lower fuel consumption and reduced logistics expenses.
Consistent bale quality makes handling and processing in recycling plants much simpler. Well-formed bales can be easily stacked, stored, and loaded, reducing the time and effort required to manage recyclable materials. This leads to smoother operations and faster throughput in recycling facilities.
Adhering to the step-by-step process—feeding, compression, tying, and ejection—significantly reduces the risk of accidents. Proper use of safety features such as interlocked doors, emergency stops, and controlled hydraulic pressure ensures operators remain protected while the vertical baler performs efficiently.
By following the correct procedures, businesses can reduce manual labor, optimize storage space, and lower transportation expenses. Efficient workflow, combined with reliable bale formation, results in consistent performance, minimizing downtime and maintenance costs.
By fully understanding and implementing this workflow, companies can maximize the benefits of their vertical baler, ensuring uniform bales, improved operational efficiency, and long-term cost-effectiveness in waste management and recycling operations.
A Vertical Baler is a vital solution for businesses managing recyclable materials such as cardboard, paper, plastics, and textiles. By understanding how a vertical baler works, companies can see how materials are efficiently fed, compressed, tied, and ejected into compact, manageable bales. This process not only saves storage space but also reduces transportation costs and improves overall operational efficiency.
Investing in the right vertical baler can streamline waste handling, enhance productivity, and support sustainable practices. For businesses looking to optimize recycling operations and improve efficiency, exploring the range of vertical balers offered by ENERPAT can provide the ideal solution. Contact ENERPAT’s team to learn more about models, specifications, and guidance tailored to your specific needs.
