Triple Compression Metal Baler

Name: Triple Compression Metal Baler
Brand: ENERPAT
Rating: 5.0 (67 reviews)

The ENERPAT TH series Metal Baler quickly compresses aluminum, copper, iron, and stainless steel, enhancing storage and transport efficiency. Utilizing UK technology and CE/ISO certified, it is safe and reliable. With 80 years of experience, ENERPAT serves 278 Fortune 500 companies.
Featuring Siemens/Schneider components, it offers outstanding quality. The machine comes with a 1-year warranty and a 5-year warranty on the motor, along with free testing, design, and training services. Designed in the UK and manufactured in China, ENERPAT provides global support.
Choose ENERPAT for efficient recycling and contribute to sustainable development.

Quantity:
Availability:





Inquiry Add to Basket Download Visit Time

Model:
TH
Brand:
ENERPAT

Triple Compression Metal Baler ENERPAT scrap baler for sale metal baler for sale metal baler machine metal baler machine for sale scrap metal baling machine

Description

Details

Product Specifications

FAQ

Customer Feedback

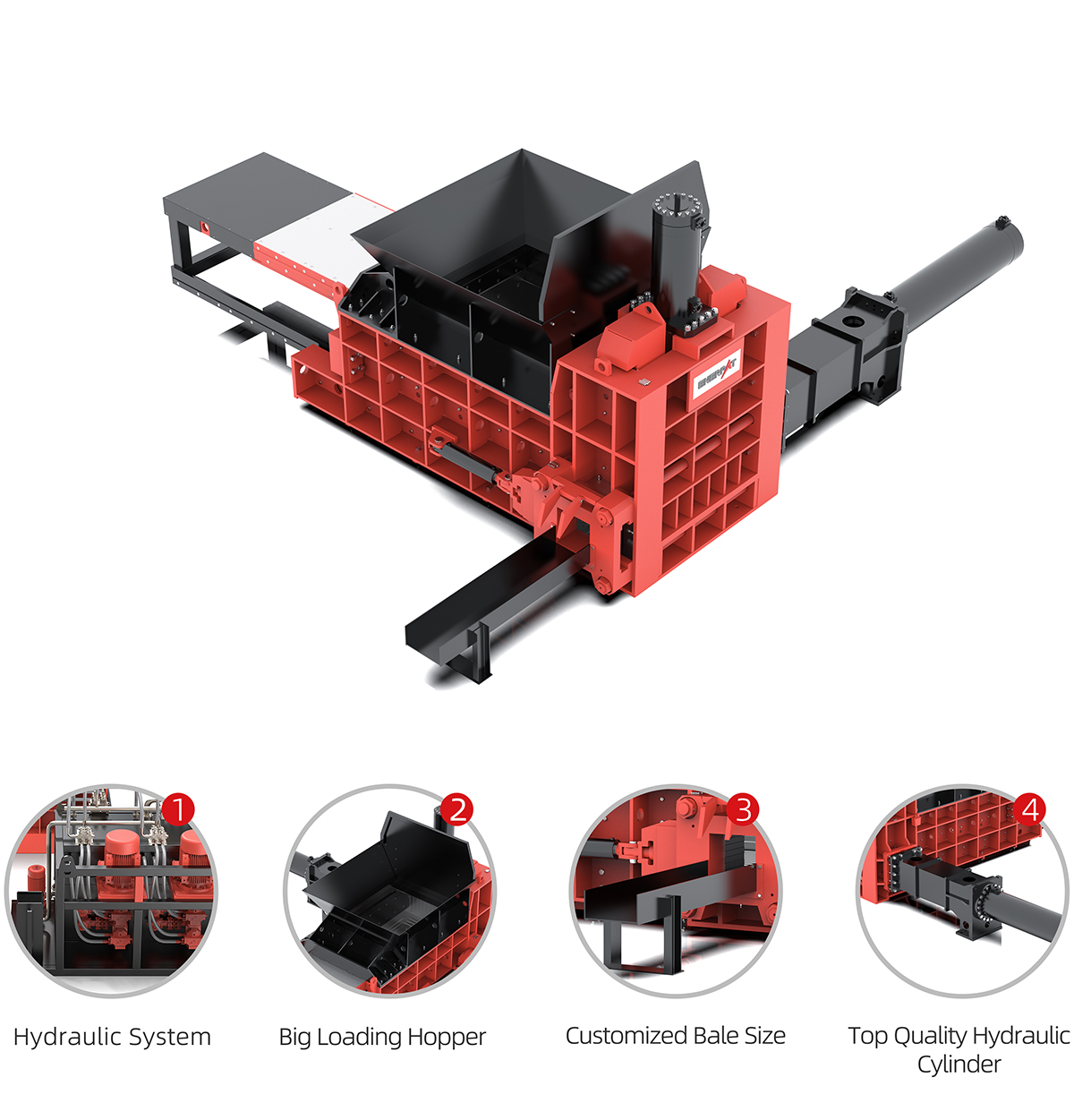

Triple Compression Metal Baler

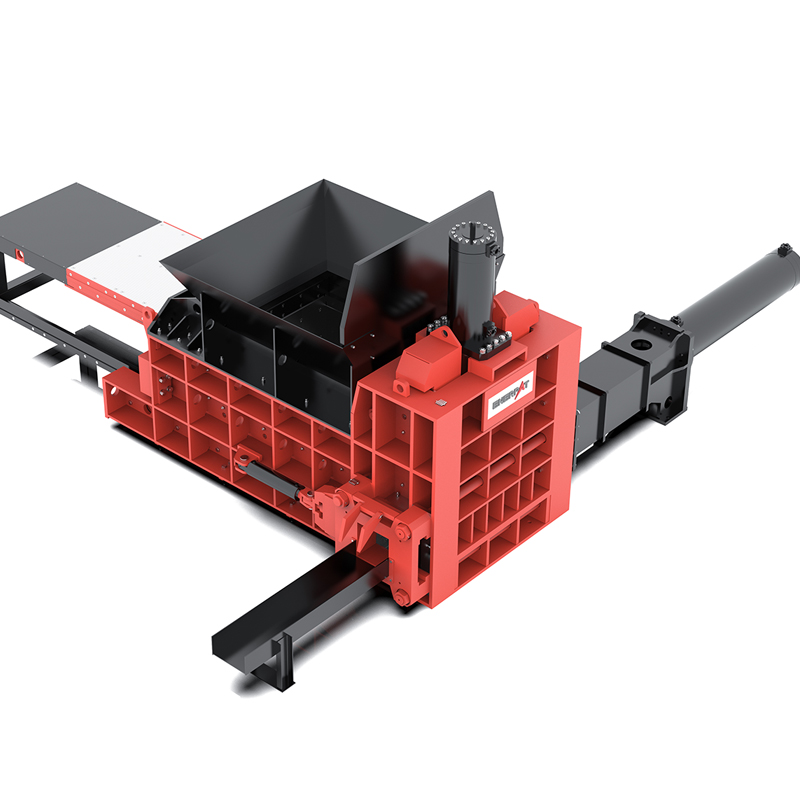

ENERPAT Triple Compression Metal Baler

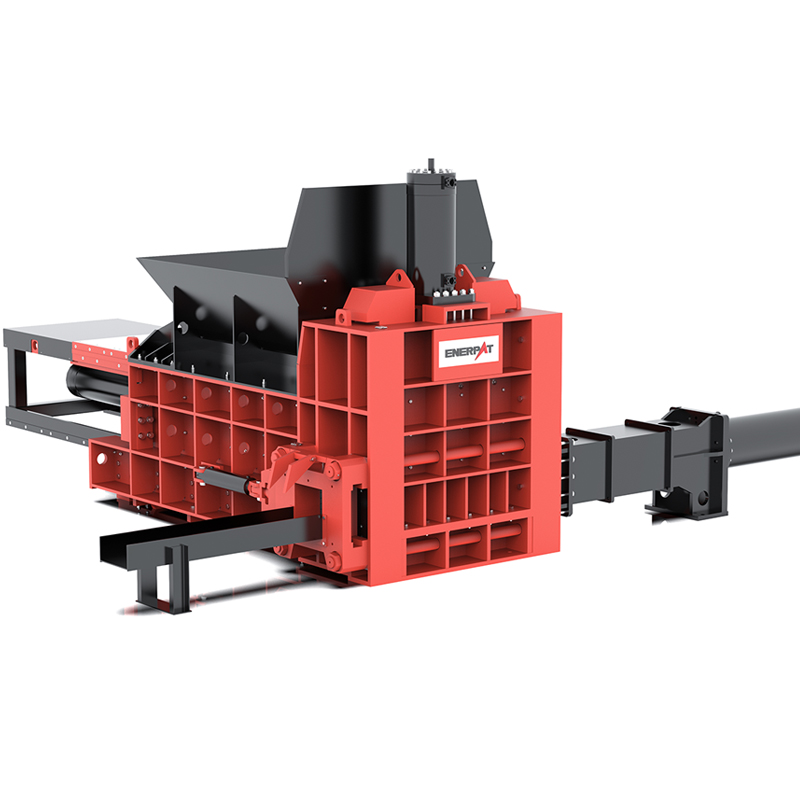

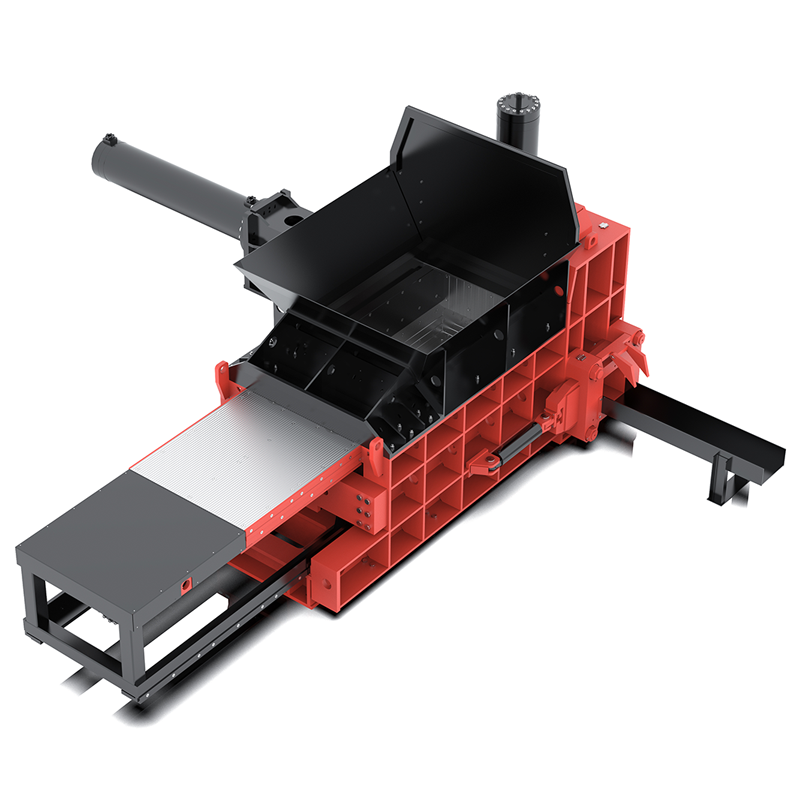

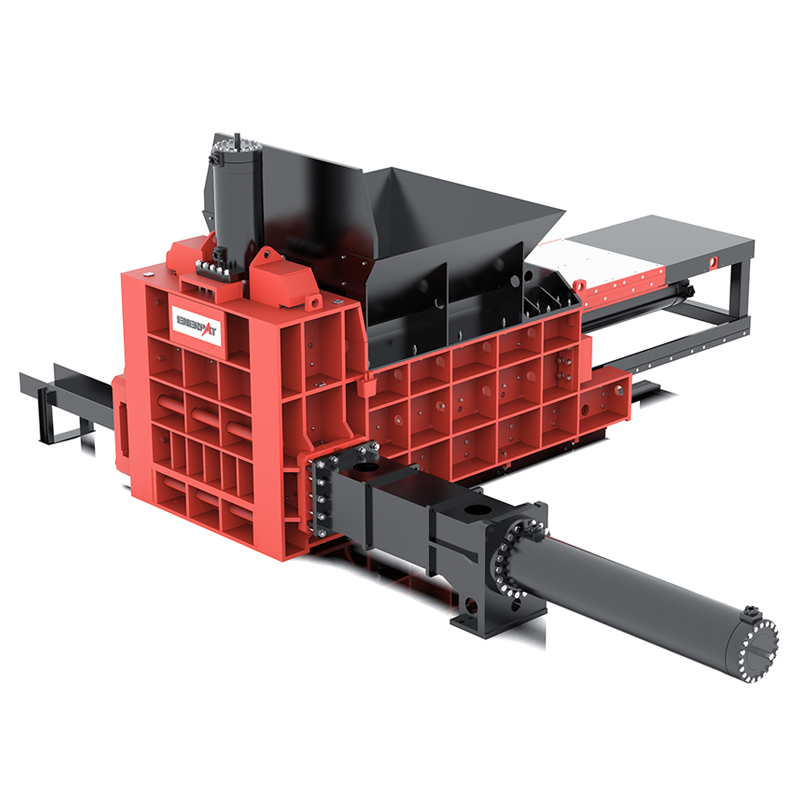

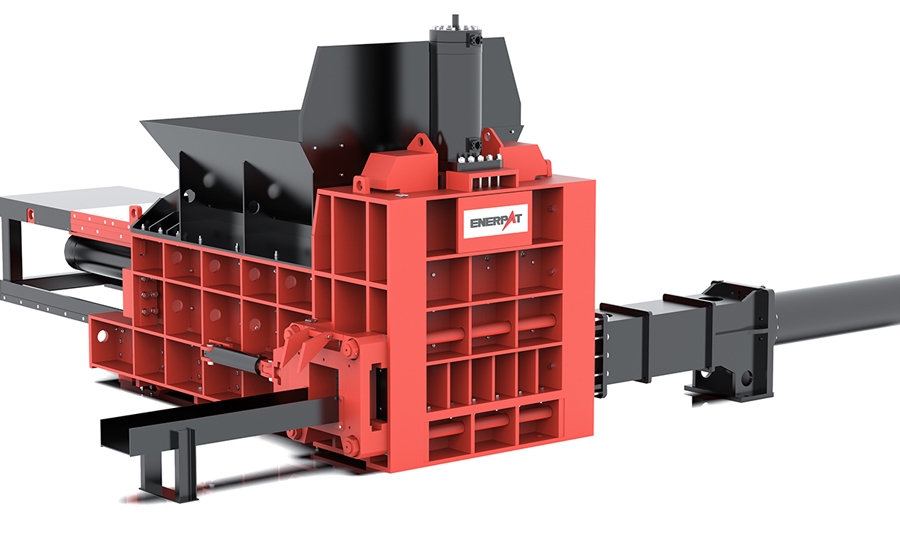

The ENERPAT TH series is a fully automatic Triple Compression Metal Baler, known for its robust reliability and efficiency. It quickly compresses metal waste into high-density bales, effectively handling materials such as aluminum, copper, iron, and stainless steel, primarily serving the metal processing industry. Utilizing advanced UK technology, the baler is CE and ISO-certified, ensuring quality and performance.

Applications: Metal processing industry, Scrap metal recycling stations, Automotive manufacturing and repair, Shipbuilding industry, Aerospace industry, Construction sites

Material Testing

5 Key Core Advantages

Uniform Stress for Efficient Forming

The metal block experiences even stress with three-way compression technology, ensuring efficient forming and high compression ratios.
Durable Professional Equipment

Expertly designed and manufactured with high-quality components for long-term, stable operation. High performance and lasting durability.
Robust Hydraulic System

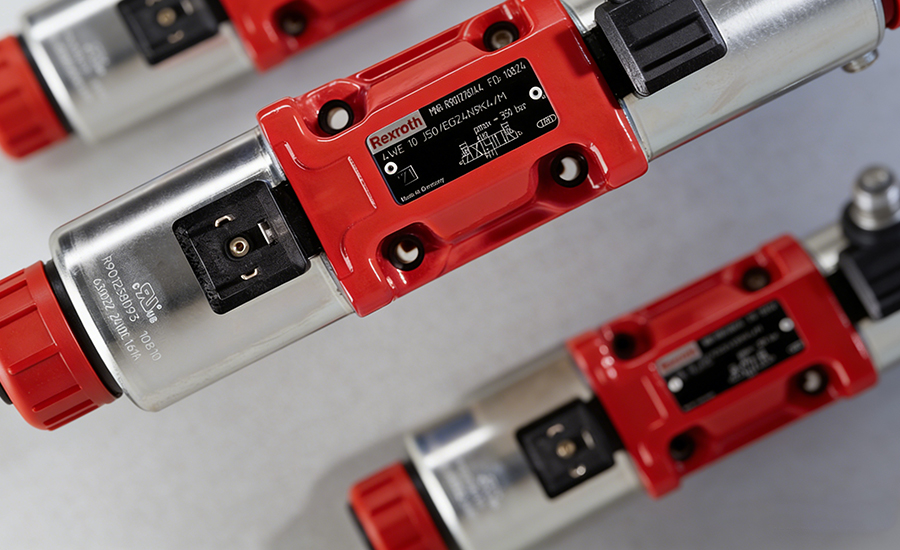

Features a high-flow cartridge valve assembly, leak-proof H-type interfaces, and durable Hallite seals for safety.
Low Maintenance Costs

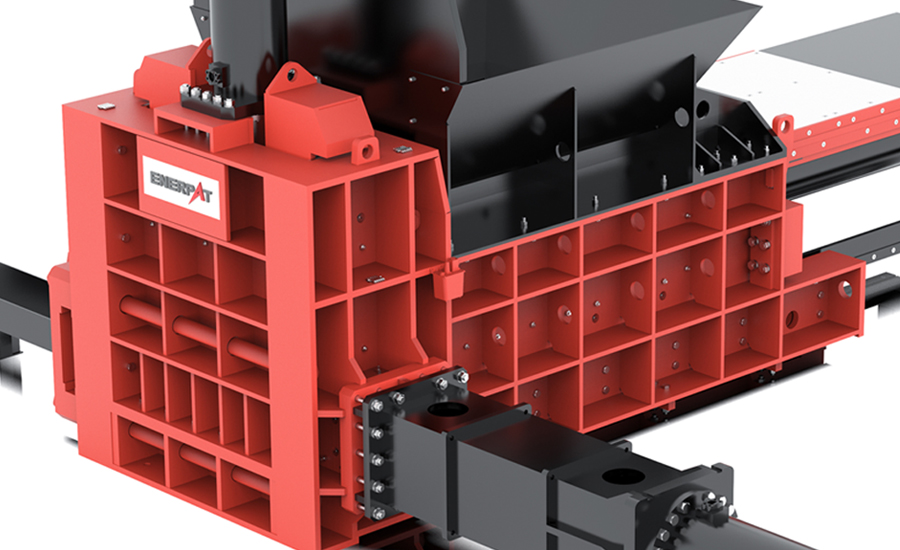

Sturdy mortise and tenon structure with modular assembly for easy maintenance and a long service life.
Smart Control System

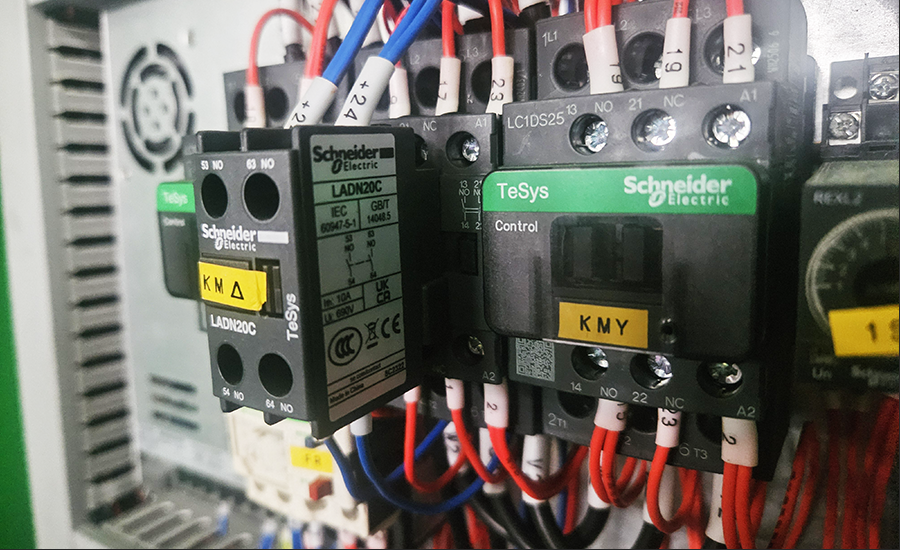

Equipped with Siemens/Schneider PLC, featuring touch-screen and button operation for intelligent programming and monitoring.

MODEL		AMB-TH-2080	AMB-TH-2210	AMB-TH-2212	AMB-TH-2812	AMB-TH-2815	AMB-TH-6020	AMB-TH-60201
BalesHxW(L)	mm	250 x 250 （var.)	300 x 300 （var.)	300 x 300 （var.)	400 x 400 （var.)	400 x 400 （var.)	600 x 600 （var.)	600 x 600 （var.)
Motor Power	kW	1 x 55	1 x 55 1 x 90 2 x 55	1 x 55 1 x 90 2 x 55	1 x 90 2 x 55	1 x 90 2 x 90 3 x 90	3 x 90	3 x 90
Cycle time (no-load)	S	25	34 - 23	38 - 26	40 - 36	46 - 28	60	69
Bales/h (90% availability)	1/h	137	101 - 149	90 - 132	86 - 95	74 - 122	57	50
Max. production capacity, Fe (bale weight)	t/h	10 （69 kg）	13 - 19 (124 kg)	12 - 17 （124 kg)	24 - 26 (264 kg)	21 - 34 (264 kg)	47 (791 kg)	59 (1,130 kg)
Max. production capacity, Cu + Ms (bale weight)	t/h	11 (78kg)	15 - 22 (141 kg)	13 - 20 (141 kg)	27 - 30 (301 kg)	23 - 39 (301 kg)	54 (903 kg)	67 (1,290 kg)
Max. production capacity, Al (bale weight)	t/h	4 (28kg)	5 - 7 (44 kg)	4 - 6 (44 kg)	8 - 9 (94 kg)	7 - 12 (94 kg)	16 (272 kg)	20 (389 kg)
Cylinder forces, 1st compactor	t	72	112	112	161	189	343	343
Cylinder forces, 2nd compactor	t	91	136	161	220	252	494	494
Cylinder forces, final compactor	t	160	200	200	350	350	800	1,000
Spec. pressure final compactor	N/ cm²	2,128	2,063	2,063	2,104	2,104	2,144	2,749
Press box, (W x L x H)	mm	795 x 1,925 x 600	1,020 x 2,235 x 800	1,245 x 2,235 x 800	1,245 x 2,840 x 1,100	1,500 x 2,840 x 1,100	2,000 x 6,000 x 1,600	2,010 x 6,000 x 1,600
Feed opening, (W x L)	mm	725 x 1,450	945 x 1,655	1,170 x 1,655	1,170 x 2,130	1,425 x 2,130	2,910 x 4,930	1,910 x 4,930
Machine dimensions (W x Lx H)	mm	4,550 x 5,800 x 3,000	5,290 x 6,605 x 3,735	5,990 x 6,605 x 3,775	6,360 x 8,035 x 4,600	7,060 x 8,035 x 4,615	10,155 x 15,650 x 6,110	10,495 x 15,650 x 6,110
Machine weight	t	approx. 25	approx. 41	approx. 44	approx. 60	approx. 67	approx. 186	approx. 201

FAQs

What are the main applications of the ENERPAT TH series metal baler?

Designed for baling aluminum, copper, iron, and stainless steel scrap, it is suitable for steel mills and foundries, enhancing metal waste processing efficiency.
How effective is the compression?

It uses triple compression to form high-density bales quickly, ensuring even pressure and a high compression ratio.
Is the fully automatic operation easy to use and maintain?

It supports fully automatic and remote operation with one-touch functionality, but regular maintenance of components and electrical systems is required, needing professional knowledge.
What are the maintenance costs?

Maintenance costs are relatively high due to the need for regular part replacements and significant energy consumption, requiring careful budgeting and planning.
What are the dimensions and weight?

Dimensions and weight vary by model, typically large and heavy, necessitating consideration of space and handling capabilities.
