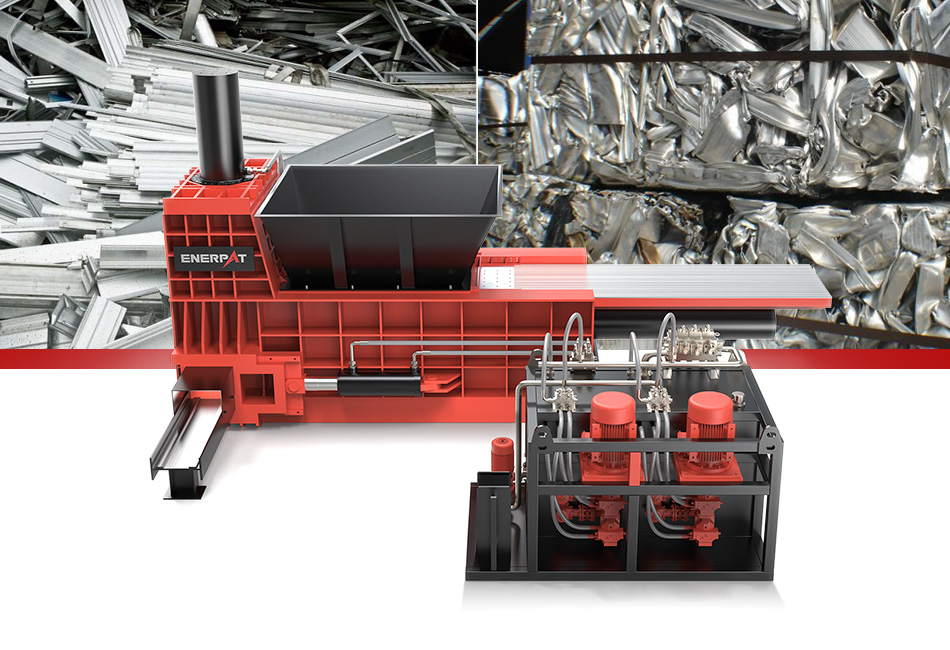

ENERPAT Scrap Compactor Extrusion Baler for Aluminum Extrusions

The ENERPAT TH-Series Tri-Way Metal Scrap Compactor is engineered for maximum efficiency and reliability in recycling aluminum extrusions, scrap aluminum, copper, iron, and stainless steel. Built with UK-certified technology and dual CE/ISO accreditation, it delivers high-density bales (250×250mm to 600×600mm) with a rapid cycle time, boosting your ROI through 4–20 t/h output (aluminum-testing).

Why Choose ENERPAT TH-Series Extrusion Baler for Aluminum Extrusions?
  • Tri-compression Compression Technology: Achieve 30% higher density vs. standard balers.
  • Fully Automated Operation: Remote control + continuous operation minimize labor costs.
  • Heavy-Duty Hydraulic System: 340+ ton pressure for processing bulky aluminum profiles.
  • Low Maintenance Design: Robust construction withstands -10°C to +40°C environments.
Availability:
Quantity:
Inquiry

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • TH

  • ENERPAT

Previous:
Next:
scrap compactor for Aluminum Extrusions scrap bale press machine aluminium baling machine aluminum compactor machine metal baler machine for sale ENERPAT metal baler machine manufacturer
Description
Details
Product Specifications
FAQ
Customer Feedback

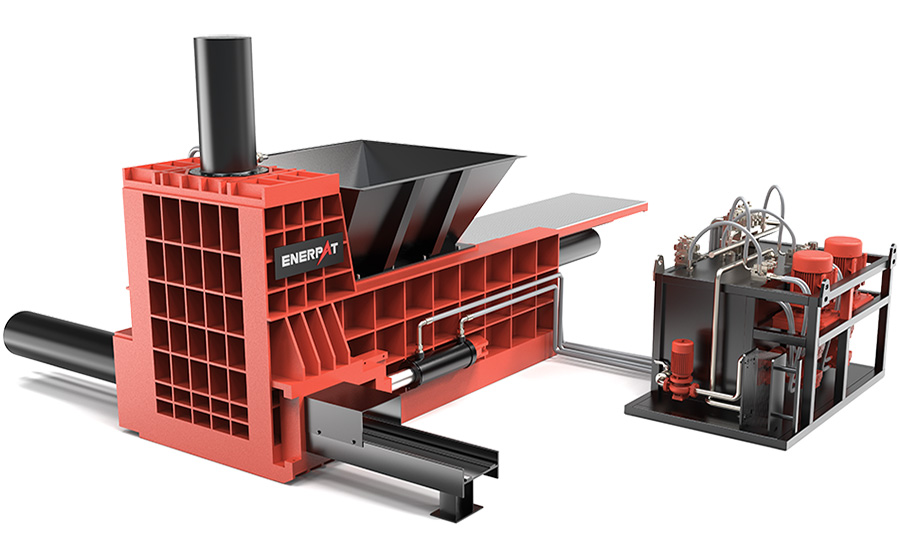

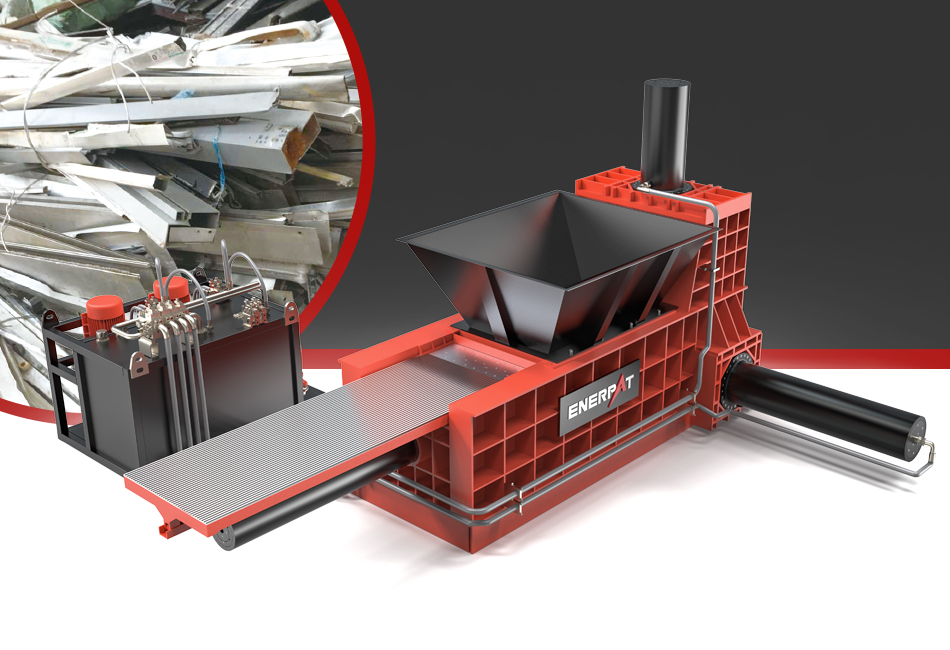

      ENERPAT Scrap Compactor Extrusion Baler for Aluminum Extrusions


ENERPAT Scrap Compactor Extrusion Baler for Aluminum Extrusions

ENERPAT's TH series Scrap Compactor Extrusion Baler for Aluminum Extrusions is specifically designed to handle a wide range of metal scraps, including aluminum extrusions, copper, iron, and stainless steel. It is an indispensable piece of equipment for metal processing and manufacturing industries such as steel mills, foundries, and more.


Key Features

1. Three - Direction Compression Technology for High Compaction Ratio

  • The baler employs a three - direction compression mechanism, which allows for a high compression ratio. This means that it can squeeze the metal scraps into compact bales, reducing their volume significantly and making transportation and storage much more cost - effective.

  • The bale size ranges from 250×250(mm) to 600×600(mm), offering flexibility to meet different storage and transportation requirements.

2. Fully - Automatic and Remote - Controlled Operation

  • With fully - automatic and remote - control operation, the baler can run continuously, minimizing manual intervention and increasing productivity. This not only saves labor costs but also reduces the risk of human errors.

3. High Pressure for Versatile Material Handling

  • The equipment has a high pressure capacity, enabling it to process various metal waste materials, including iron, aluminum, and copper. Whether you are dealing with small aluminum chips or large aluminum extrusions, this baler can handle them with ease, meeting the diverse needs of different customers.

4. British Technology and Quality Assurance

  • The entire machine is built using advanced British technology, ensuring its high - quality and reliable performance. It has passed both CE and ISO certifications, providing you with a 100% quality guarantee. You can have full confidence in the durability and efficiency of this baler.


Material Testing

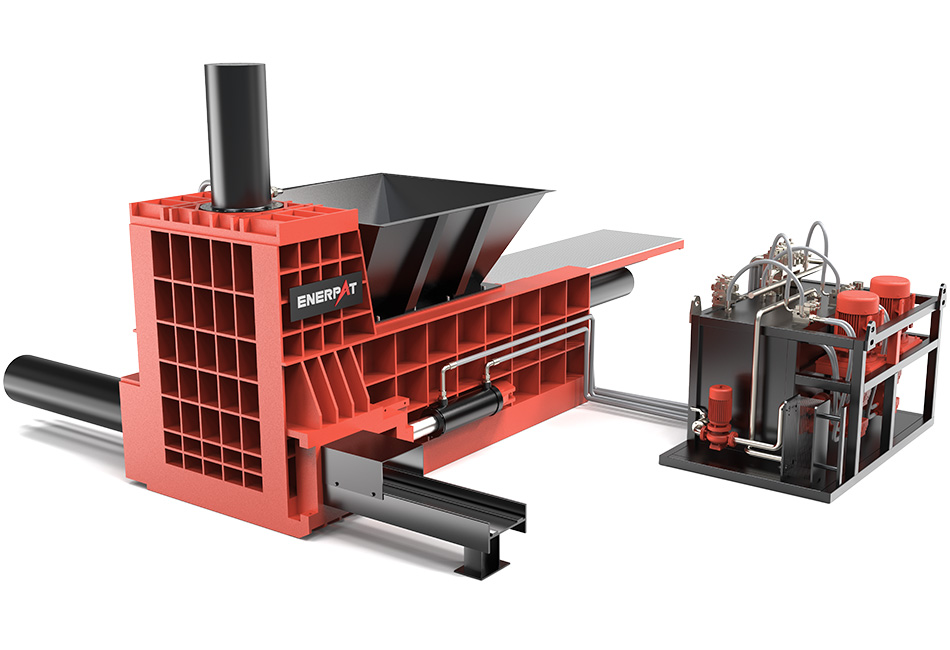

Triple Compression Metal Baler
Triple Compression Metal Baler
Triple Compression Metal Baler
Triple Compression Metal Baler


Application Industries

In addition to being widely used in steel mills and foundries, this Scrap Compactor Extrusion Baler for Aluminum Extrusions is also suitable for other metal - related industries such as aluminum recycling plants, metal fabrication workshops, and scrap metal yards. It helps these industries to efficiently manage their metal waste, reduce costs, and contribute to environmental sustainability.


Choose ENERPAT's TH series Scrap Compactor Extrusion Baler for Aluminum Extrusions and experience a new level of metal waste processing efficiency!

5 Key Core Advantages


MODEL
AMB-TH-2080AMB-TH-2210AMB-TH-2212AMB-TH-2812AMB-TH-2815AMB-TH-6020AMB-TH-60201
BalesHxW(L)mm250 x 250 （var.)300 x 300 （var.)300 x 300 （var.)400 x 400 （var.)400 x 400 （var.)600 x 600 （var.)600 x 600 （var.)
Motor PowerkW1 x 55

1 x 55

1 x 90

2 x 55

1 x 55

1 x 90

2 x 55

1 x 90

2 x 55

1 x 90

2 x 90

3 x 90

3 x 903 x 90
Cycle time
(no-load)		S2534 - 2338 - 2640 - 3646 - 286069
Bales/h
(90% availability)		1/h137101 - 14990 - 13286 - 9574 - 1225750
Max. production
capacity, Fe
(bale weight)		t/h

10

（69 kg）

13 - 19

(124 kg)

12 - 17

（124 kg)

24 - 26

(264 kg)

21 - 34

(264 kg)

47

(791 kg)

59

(1,130 kg)

Max. production
capacity, Cu + Ms
(bale weight)		t/h

11

(78kg)

15 - 22

(141 kg)

13 - 20

(141 kg)

27 - 30

(301 kg)

23 - 39

(301 kg)

54

(903 kg)

67

(1,290 kg)

Max. production
capacity, Al
(bale weight)		t/h

4

(28kg)

5 - 7

(44 kg)

4 - 6

(44 kg)

8 - 9

(94 kg)

7 - 12

(94 kg)

16

(272 kg)

20

(389 kg)

Cylinder forces,
1st compactor		t72112112161189343343
Cylinder forces,
2nd compactor		t91136161220252494494
Cylinder forces,
final compactor		t1602002003503508001,000
Spec. pressure final compactorN/ cm²2,1282,0632,0632,1042,1042,1442,749
Press box,
(W x L x H)		mm795 x 1,925 x 6001,020 x 2,235 x 8001,245 x 2,235 x 8001,245 x 2,840 x 1,1001,500 x 2,840 x 1,1002,000 x 6,000 x 1,6002,010 x 6,000 x 1,600
Feed opening,
(W x L)		mm725 x 1,450945 x 1,6551,170 x 1,6551,170 x 2,1301,425 x 2,1302,910 x 4,9301,910 x 4,930

Machine dimensions

(W x Lx H)

mm4,550 x 5,800 x 3,0005,290 x 6,605 x 3,7355,990 x 6,605 x 3,7756,360 x 8,035 x 4,6007,060 x 8,035 x 4,61510,155 x 15,650 x 6,11010,495 x 15,650 x 6,110
Machine weighttapprox. 25approx. 41approx. 44approx. 60approx. 67approx. 186approx. 201


FAQs
  • Q1: Can your Scrap Compactor Extrusion Baler handle irregularly shaped aluminum extrusions and bulky scrap?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Absolutely. The ENERPAT TH-Series Tri-Way Baler uses 3-way hydraulic compression (340+ tons) to compact even the most challenging aluminum extrusions, including U-channels, T-sections, and mixed scrap. Its adjustable bale size (250×250mm to 600×600mm) ensures uniform density regardless of material shape.
  • Q2: Will frequent downtime affect our production efficiency?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Zero compromise on uptime. With fully automated operation and a heavy-duty hydraulic system, the TH-Series achieves rapid cycles (4–20 t/h for aluminum) while operating continuously in temperatures from -10°C to +40°C. Maintenance is simplified with self-lubricating components and IoT-enabled fault alerts.
  • Q3: How does your Scrap Compactor reduce long-term operating costs?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: By design:
    Energy Efficiency: Auto-adjusting hydraulic pressure cuts power waste by 25% vs. conventional balers.
    Labor Savings: Remote control operation requires only 1–2 workers.
    Durability: UK-engineered steel frame resorts to 50% fewer part replacements over 10 years.
  • Q4: Is the compressed bale density sufficient for high-value recycling?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Yes. Our tri-axis compression achieves 30% higher density than single-axis machines, maximizing scrap value. For aluminum extrusions, bales reach up to 2.8 g/cm³ – meeting strict smelter standards for premium pricing.
  • Q5: Are there compliance risks with international environmental regulations?
    加 Created with Sketch.
    形状 Created with Sketch.
    A: Fully certified, zero risks. The TH-Series complies with:
    EU Stage V emissions guidelines (via electric/hydraulic power options).
    CE & ISO 14001 for environmental management.
    OSHA safety standards (emergency stop, protective guarding).

Marko


"Our experience with the Triple Compression Metal Baler has been outstanding. Since its installation, our production efficiency has greatly increased. The machine runs smoothly with minimal downtime, significantly reducing maintenance costs. The innovative design ensures operational convenience, and the bales produced are consistently high-quality, perfectly suited for our recycling operations."


Lukasz


"We are extremely pleased with the performance of the Triple Compression Metal Baler. It has streamlined our processes and delivered reliable results, enhancing our overall productivity. Maintenance has been straightforward, thanks to the machine's robust build and user-friendly features. The excellent after-sales support and professionalism of the team have further solidified our confidence in this equipment."
